High Performance

Rota 7R

High throughput in the laboratory Result -oriented, convenient and Robust

Contact an Expert

Swing-out rotor

  • 3000 ml
  • 4,500 rpm
  • 4,415xg

Fixed-angle rotor

  • 2000 ml
  • 14,000 rpm
  • 25,901xg

User

  • Hospitals
  • Universities and Colleges
  • Cell culture Labs
  • Environmental Labs
  • Pharmaceutical Labs
  • Manufacturing

High Performance

The ROTA 7 and ROTA 7R benchtop centrifuge series are distinguished by their flexible rotor options and high capacity. These models accommodate large specimen volumes efficiently, featuring a swing-bucket rotor with a maximum capacity of 4x750 ml or a fixed angle rotor holding up to 4x500 ml at 8000RPM. Their exceptionally smooth operation ensures reliable and reproducible sedimentation results. With a broad selection of rotors available, these centrifuges are well-suited for use in research laboratories, hospitals, universities, pharmaceutical laboratories, as well as cell culture and biotechnology applications.

Ergonomic Lid Opening

Our precision lid-locking mechanism ensures a secure seal with minimal physical effort, reducing laboratory fatigue and enhancing user confidence during every operation.

Footprint

At just 84.50 cm wide, the ROTA 7R maximizes your bench space while delivering professional‑grade rotational velocity

Whisper-Quiet Operation

Powered by a precision‑engineered European brushless motor, the ROTA 7R delivers professional‑grade rotational velocity with minimal noise. This advanced motor design eliminates friction and vibration, ensuring smooth operation that reduces laboratory fatigue and maintains a calm working environment.

No downloads available for this product.

Max. capacity [ml]
Swing-out rotor(max capacity [ml]) 3000 [ml] 4x750ml
Fixed-angle rotor(max capacity [ml]) 2000 [ml] 4x500ml
Max. RCF 25,901 x g
Max. speed [rpm] 14,000
Min. speed [rpm] 800
Noise level at maximum speed (approximate) [db(A)]
Fixed-angle rotor (84500) 58 db (A)
Swing-out rotor with bucket(404750) 58 db (A)
Max. acceleration time [s]
Fixed-angle rotor (84500)
Swing-out rotor with bucket(404750)
Max. braking time [s]
Fixed-angle rotor (84500)
Swing-out rotor with bucket(404750)
Temperature setting range [°C] -20°C to +40°C
Power consumption [W] 1300
Height x Width x Depth [mm] 475x845x735
Height with open lid [mm] 1005
Weight without rotor [kg] 110
Refrigerant R404
Charge [kg] / pressure [bar]
CO2 equivalent [t]
Swing-Out Rotor 200447

S004x750ml

4 x 750 ml
4,500 rpm
4,415 x g
Swing-Out Rotor 200384

S004x500ml

4 x 500 ml
4,500 rpm
4,369 x g
Swing-Out Rotor 200317

S004x250ml

4 x 250 ml
4,500 rpm
4,302 x g
Swing-Out Rotor 200414

S004x4MTP

4 x 192 ml
3,000 rpm
1,841 x g
Swing-Out Rotor 200365

S002x4MTP

2 x 192 ml
3,700 rpm
2,189 x g
Fixed-Angle Rotor 200468

A004x500ml

4 x 500 ml
8,000 rpm
10,876 x g
Fixed-Angle Rotor 200442

A006x250ml

6 x 250 ml
10,000 rpm
15,540 x g
Fixed-Angle Rotor 200600

A014x50ml

14 x 50 ml
10,000 rpm
17,217 x g
Fixed-Angle Rotor 200367

A006x100ml

6 x 100 ml
11,000 rpm
15, 422 x g
Fixed-Angle Rotor 200550

A006x085ml

4 x 85 ml
12,000 rpm
18,514xg
Fixed-Angle Rotor 200436

A008x50ml

8 x 50 ml
12,000 rpm
17,065xg
Fixed-Angle Rotor 200422

A012x30ml

12 x 30 ml
12,000 rpm
18,675xg
Fixed-Angle Rotor 200368

A006x050ml

6 x 50 ml
12,100 rpm
20,133xg
Fixed-Angle Rotor 200421

A020x10ml

20 x 10 ml
12,000 rpm
15,777xg
Fixed-Angle Rotor 200434

A012x15ml

12 x 15
13,100 rpm
23,791xg
Fixed-Angle Rotor 200379

A024x005ml

24 x 5 ml
13,100 rpm
25,901xg
Fixed-Angle Rotor 200375

A048x1.5ml

48 x 1.5 ml
14,000 rpm
21,475xg
Fixed-Angle Rotor 200416

A096x0.2ml

96 x 0.2 ml
14,000 rpm
19,722xg
Fixed-Angle Rotor 200629

A024x15ml

24 x 15 ml
11,000 rpm
17,045xg
Fixed-Angle Rotor 200378

A040x15 ml

40 x 15 ml
5,500 rpm
5,310xg

More from Scientiquipp A wide range of options

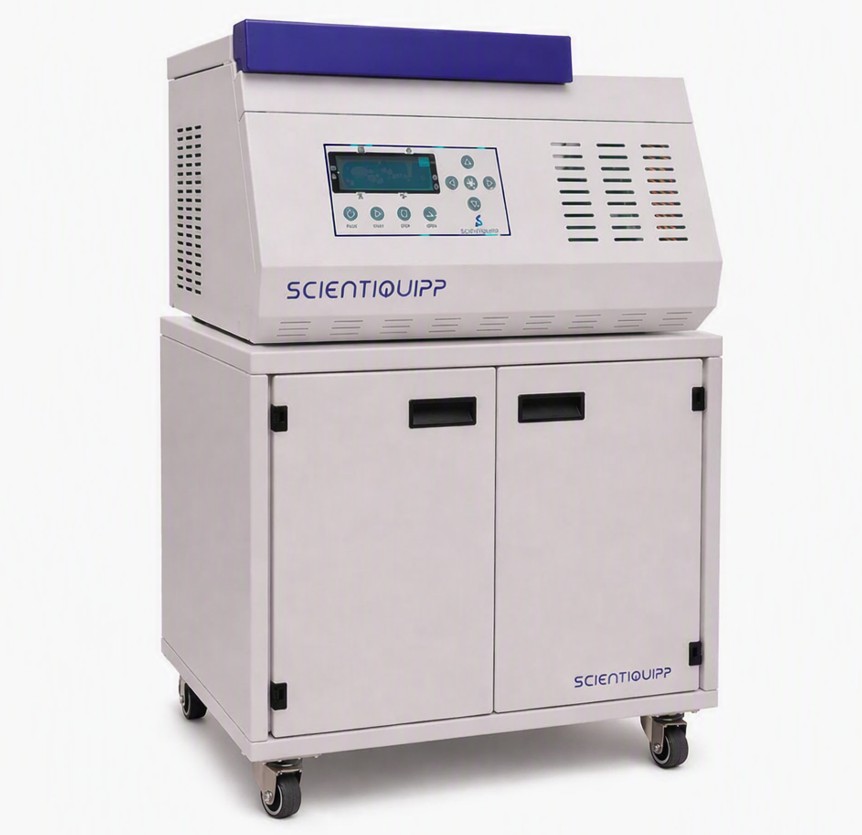

Centrifuge Table

Scientiquipp centrifuge tables are offered in three sizes, each precisely matched to the respective centrifuge dimensions. These tables provide an ergonomic working height, alongside a well-considered footprint for efficient space utilization. Constructed from coated sheet steel, they feature a storage compartment with two doors and a practical shelf. Lockable castors ensure the tables can be repositioned and secured easily within laboratory environments.
