Max. capacity [ml]
Swing-out rotor(max capacity [ml])
3000 [ml] 4x750ml
Fixed-angle rotor(max capacity [ml])
2000 [ml] 4x500ml
Max. RCF
21,734 x g
Max. speed [rpm]
13,000
Min. speed [rpm]
800
Noise level at maximum speed (approximate) [db(A)]
Fixed-angle rotor (84500)
Swing-out rotor with bucket(404750)
Max. acceleration time [s]
Fixed-angle rotor (84500)
Swing-out rotor with bucket(404750)
Max. braking time [s]
Fixed-angle rotor (84500)
Swing-out rotor with bucket(404750)
Temperature setting range [°C]
Ambient
Power consumption [W]
1300
Height x Width x Depth [mm]
475x580x730
Height with open lid [mm]
1000
Weight without rotor [kg]
85

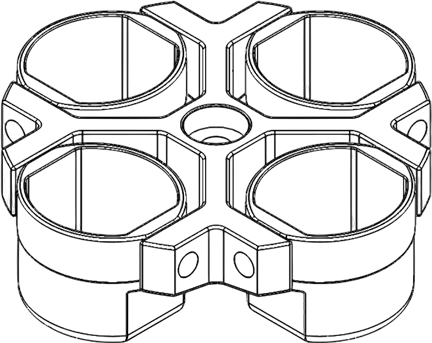

Swing-Out Rotor 200447
S004x750ml
4 x 750 ml
4,500 rpm
4,415 x g
Swing-Out Rotor 200384
S004x500ml
4 x 500 ml
4,500 rpm
4,369 x g
Swing-Out Rotor 200317
S004x250ml
4 x 250 ml
4,500 rpm
4,302 x g
Swing-Out Rotor 200414
S004x4MTP
4 x 192 ml
3,000 rpm
1,841 x g
Swing-Out Rotor 200365
S002x4MTP
2 x 192 ml
3,700 rpm
2,189 x g

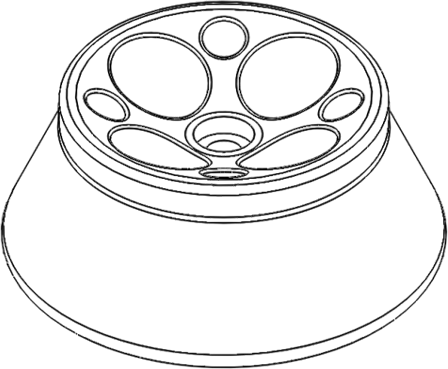

Fixed-Angle Rotor 200368
A006x050ml
6 x 50 ml
12,100 rpm
20,133xg
Fixed-Angle Rotor 200378
A040x15 ml
40 x 15 ml
5,500 rpm
5,310xg
Fixed-Angle Rotor 200702
A004x500ml
4 x 500 ml
7,000 rpm
8,327 x g
Fixed-Angle Rotor 200709
A006x250ml
6 x 250 ml
8,000 rpm
9,946 x g
Fixed-Angle Rotor 200724
A014x50ml
14 x 50 ml
8,000 rpm
11,019 x g
Fixed-Angle Rotor 200729
A006x100ml
6 x 100 ml
10,000 rpm
12,745 x g
Fixed-Angle Rotor 200736
A006x85 ml
6 x 85 ml
10,000 rpm
12,857xg
Fixed-Angle Rotor 200743
A008x50ml
8 x 50 ml
10,000 rpm
11,963xg
Fixed-Angle Rotor 200748
A012x30ml
12 x 30 ml
11,000 rpm
15,692xg
Fixed-Angle Rotor 200752
A020x10ml
20 x 10 ml
10,000 rpm
10,596xg
Fixed-Angle Rotor 200753
A012x15ml
12 x 15
11,000 rpm
16,774xg
Fixed-Angle Rotor 200754
A024x005ml
24 x 5 ml
12,000 rpm
21,734xg
Fixed-Angle Rotor 200755
A048x1.5ml
48 x 1.5 ml
13,000 rpm
18,516xg
Fixed-Angle Rotor 200758
A096x0.2ml
96 x 0.2 ml
12,000 rpm
14,489xg
