HIGH CAPACITY BENCHTOP

Rota 6

Contact an Expert

Swing-out rotor

  • 2000 ml
  • 4,500 rpm
  • 4,369xg

Fixed-angle rotor

  • 1500 ml
  • 13,000 rpm
  • 21,734xg

HIGH CAPACITY BENCHTOP

The ROTA 6 product series is the perfect choice for all users who set stringent demands on refrigerated benchtop centrifuges and prefer a wide variety of operating options, with larger sample volumes. The series has a robust capacity of 6x250ml in a fixed angle rotor or 4x500ml in a swing out rotor. Combined with an extensive range of rotors and accessories, this all-purpose centrifuge sets standards for versatility and performance. The Rota 6  offer great versatility and volume flexibility with 15ml and 50ml tubes with options of six, eight or fourteen tubes of 50ml at varying speeds or the high speed 24x15ml Fixed angle rotor. These unique rotors and high capacity make this unit indispensable for the modern lab that will take care of existing sample volumes and future volumes in the medium to high throughput laboratory.

Ergonomic Lid Opening

Our precision lid-locking mechanism ensures a secure seal with minimal physical effort, reducing laboratory fatigue and enhancing user confidence during every operation.

Footprint

At just 55.5 cm wide, the ROTA 6 maximizes your bench space while delivering professional‑grade rotational velocity

Whisper-Quiet Operation

Powered by a precision‑engineered European brushless motor, the ROTA 6 delivers professional‑grade rotational velocity with minimal noise. This advanced motor design eliminates friction and vibration, ensuring smooth operation that reduces laboratory fatigue and maintains a calm working environment.

No downloads available for this product.

Max. capacity [ml]
Swing-out rotor(max capacity [ml]) 2000 [ml] 4x500ml
Fixed-angle rotor(max capacity [ml]) 1500 [ml] 6x250ml
Max. RCF 21,734 x g
Max. speed [rpm] 13,000
Min. speed [rpm] 800
Noise level at maximum speed (approximate) [db(A)]
Fixed-angle rotor (86250) 58 db (A)
Swing-out rotor with bucket(404500) 58 db (A)
Max. acceleration time [s]
Fixed-angle rotor (86250)
Swing-out rotor with bucket(404500)
Max. braking time [s]
Fixed-angle rotor (86250)
Swing-out rotor with bucket(404500)
Temperature setting range [°C] Ambient
Power consumption [W] 1300
Height x Width x Depth [mm] 450x555x705
Height with open lid [mm] 980
Weight without rotor [kg] 80

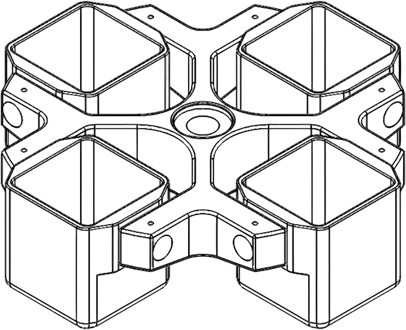

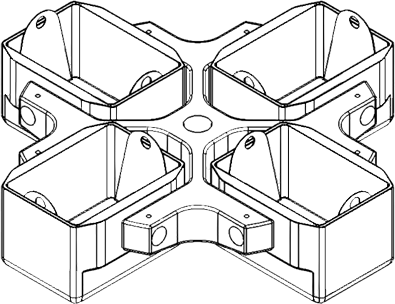

Swing-Out Rotor 200384

S004x500ml

4 x 500 ml
4,500 rpm
4,369 x g
Swing-Out Rotor 200317

S004x250ml

4 x 250 ml
4,500 rpm
4,302 x g
Swing-Out Rotor 200414

S004x4MTP

4 x 192 ml
3,000 rpm
1,841 x g
Swing-Out Rotor 200365

S002x4MTP

2 x 192 ml
3,700 rpm
2,189 x g
Fixed-Angle Rotor 200709

A006x250ml

6 x 250 ml
8,000 rpm
9,946 x g
Fixed-Angle Rotor 200724

A014x50ml

14 x 50 ml
8,000 rpm
11,019 x g
Fixed-Angle Rotor 200729

A006x100ml

6 x 100 ml
10,000 rpm
12,745 x g
Fixed-Angle Rotor 200736

A006x85 ml

6 x 85 ml
10,000 rpm
12,857xg
Fixed-Angle Rotor 200743

A008x50ml

8 x 50 ml
10,000 rpm
11,963xg
Fixed-Angle Rotor 200748

A012x30ml

12 x 30 ml
11,000 rpm
15,692xg
Fixed-Angle Rotor 200752

A020x10ml

20 x 10 ml
10,000 rpm
10,596xg
Fixed-Angle Rotor 200753

A012x15ml

12 x 15
11,000 rpm
16,774xg
Fixed-Angle Rotor 200754

A024x005ml

24 x 5 ml
12,000 rpm
21,734xg
Fixed-Angle Rotor 200755

A048x1.5ml

48 x 1.5 ml
13,000 rpm
18,516xg
Fixed-Angle Rotor 200758

A096x0.2ml

96 x 0.2 ml
12,000 rpm
14,489xg
