High Capacity Benchtop

Rota 6R

Top class for demanding users

Contact an Expert

Swing-out rotor

  • 2000 ml
  • 4,500 rpm
  • 4,369xg

Fixed-angle rotor

  • 1500 ml
  • 14,000 rpm
  • 25,901 x g

User

  • Diagnostics
  • Hospitals
  • Food Labs
  • Universities and Colleges
  • Manufacturing
  • Cell Culture Labs
  • Research and Development
  • Lateral Flow Chemistry

High Capacity Benchtop

The ROTA 6 and 6R product series is the perfect choice for all users who set stringent demands on refrigerated benchtop centrifuges and prefer a wide variety of operating options, with larger sample volumes. The series has a robust capacity of 6x250ml in a fixed angle rotor or 4x500ml in a swing out rotor. Combined with an extensive range of rotors and accessories, this all-purpose centrifuge sets standards for versatility and performance. The 6 and 6R offer great versatility and volume flexibility with 15ml and 50ml tubes with options of six, eight or fourteen tubes of 50ml at varying speeds or the high speed 24x15ml Fixed angle rotor. These unique rotors and high capacity make this unit indispensable for the modern lab that will take care of existing sample volumes and future volumes in the medium to high throughput laboratory.

Ergonomic Lid Opening

Our precision lid-locking mechanism ensures a secure seal with minimal physical effort, reducing laboratory fatigue and enhancing user confidence during every operation.

Footprint

At just 81 cm wide, the ROTA 6R maximizes your bench space while delivering professional‑grade rotational velocity

Whisper-Quiet Operation

Powered by a precision‑engineered European brushless motor, the ROTA 6R delivers professional‑grade rotational velocity with minimal noise. This advanced motor design eliminates friction and vibration, ensuring smooth operation that reduces laboratory fatigue and maintains a calm working environment.

PDF
User Manual
3.47 MB
Max. capacity [ml]
Swing-out rotor(max capacity [ml]) 2000 [ml] 4x500ml
Fixed-angle rotor(max capacity [ml]) 1500 [ml] 6x250ml
Max. RCF 25,901 x g
Max. speed [rpm] 14,000
Min. speed [rpm] 800
Noise level at maximum speed (approximate) [db(A)]
Fixed-angle rotor (86250) 58 db (A)
Swing-out rotor with bucket(404500) 52 db (A)
Max. acceleration time [s]
Fixed-angle rotor (86250)
Swing-out rotor with bucket(404500)
Max. braking time [s]
Fixed-angle rotor (86250)
Swing-out rotor with bucket(404500)
Temperature setting range [°C] -20°C to +40°C
Power consumption [W] 1700
Height x Width x Depth [mm] 450 x 810 x 700
Height with open lid [mm] 980
Weight without rotor [kg] 100
Refrigerant R134a
Charge [kg] / pressure [bar] 0.5
CO2 equivalent [t] 0.71

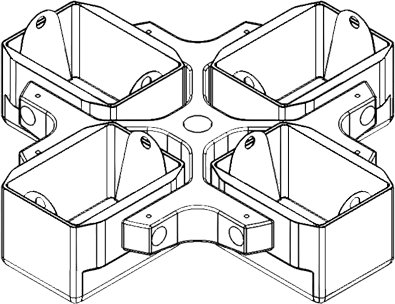

Swing-Out Rotor 200384

S004x500ml

4 x 500 ml
4,500 rpm
4,369 x g
Swing-Out Rotor 200317

S004x250ml

4 x 250 ml
4,500 rpm
4,302 x g

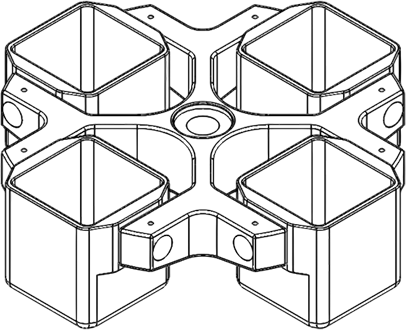

Swing-Out Rotor 200414

S004x4MTP

4 x 192 ml
3,000 rpm
1,841 x g
Swing-Out Rotor 200365

S002x4MTP

2 x 192 ml
3,700 rpm
2,189 x g

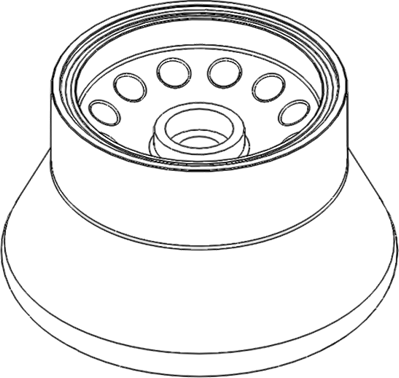

Fixed-Angle Rotor 200442

A006x250ml

6 x 250 ml
10,000 rpm
15,540 x g

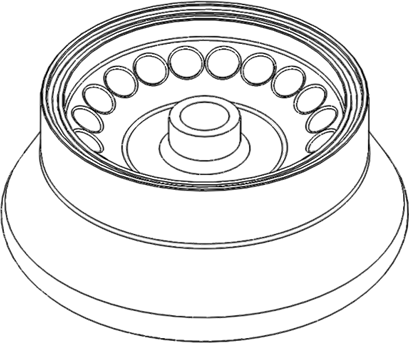

Fixed-Angle Rotor 200600

A014x50ml

14 x 50 ml
10,000 rpm
17,217 x g
Fixed-Angle Rotor 200367

A006x100ml

6 x 100 ml
11,000 rpm
15, 422 x g
Fixed-Angle Rotor 200550

A006x085ml

4 x 85 ml
12,000 rpm
18,514xg
Fixed-Angle Rotor 200436

A008x50ml

8 x 50 ml
12,000 rpm
17,065xg

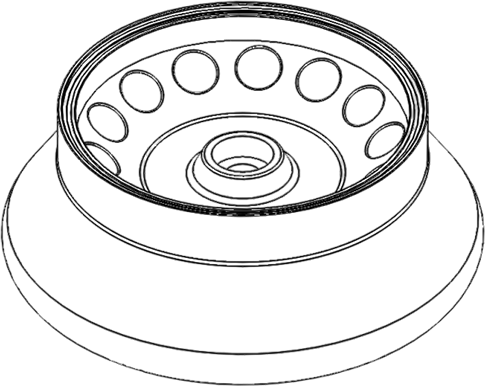

Fixed-Angle Rotor 200422

A012x30ml

12 x 30 ml
12,000 rpm
18,675xg

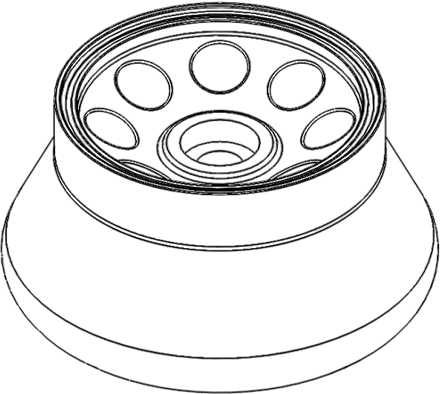

Fixed-Angle Rotor 200368

A006x050ml

6 x 50 ml
12,100 rpm
20,133xg
Fixed-Angle Rotor 200421

A020x10ml

20 x 10 ml
12,000 rpm
15,777xg
Fixed-Angle Rotor 200434

A012x15ml

12 x 15
13,100 rpm
23,791xg

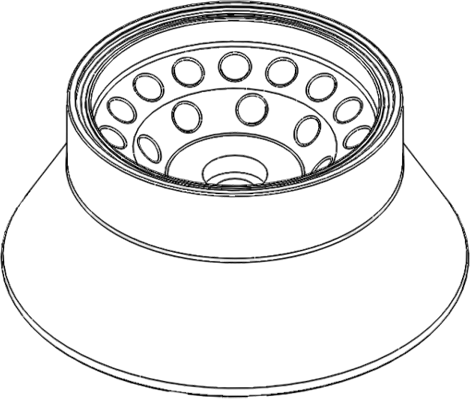

Fixed-Angle Rotor 200379

A024x005ml

24 x 5 ml
13,100 rpm
25,901xg
Fixed-Angle Rotor 200375

A048x1.5ml

48 x 1.5 ml
14,000 rpm
21,475xg

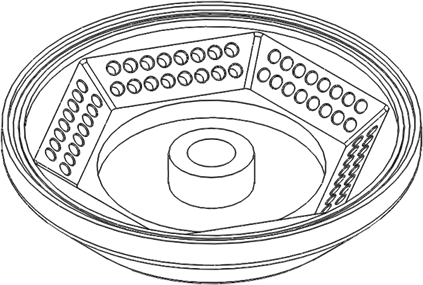

Fixed-Angle Rotor 200416

A096x0.2ml

96 x 0.2 ml
14,000 rpm
19,722xg
Fixed-Angle Rotor 200629

A024x15ml

24 x 15 ml
11,000 rpm
17,045xg
Fixed-Angle Rotor 200378

A040x15 ml

40 x 15 ml
5,500 rpm
5,310xg

More from Scientiquipp A wide range of options

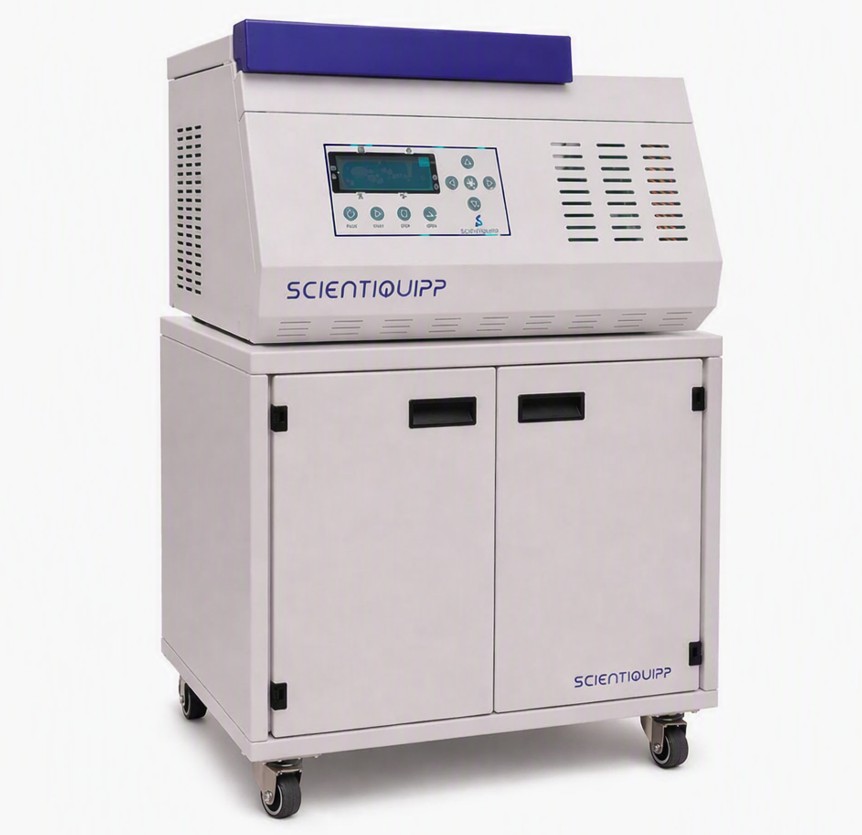

Centrifuge Table

Scientiquipp centrifuge tables are offered in three sizes, each precisely matched to the respective centrifuge dimensions. These tables provide an ergonomic working height, alongside a well-considered footprint for efficient space utilization. Constructed from coated sheet steel, they feature a storage compartment with two doors and a practical shelf. Lockable castors ensure the tables can be repositioned and secured easily within laboratory environments.
