High Performance

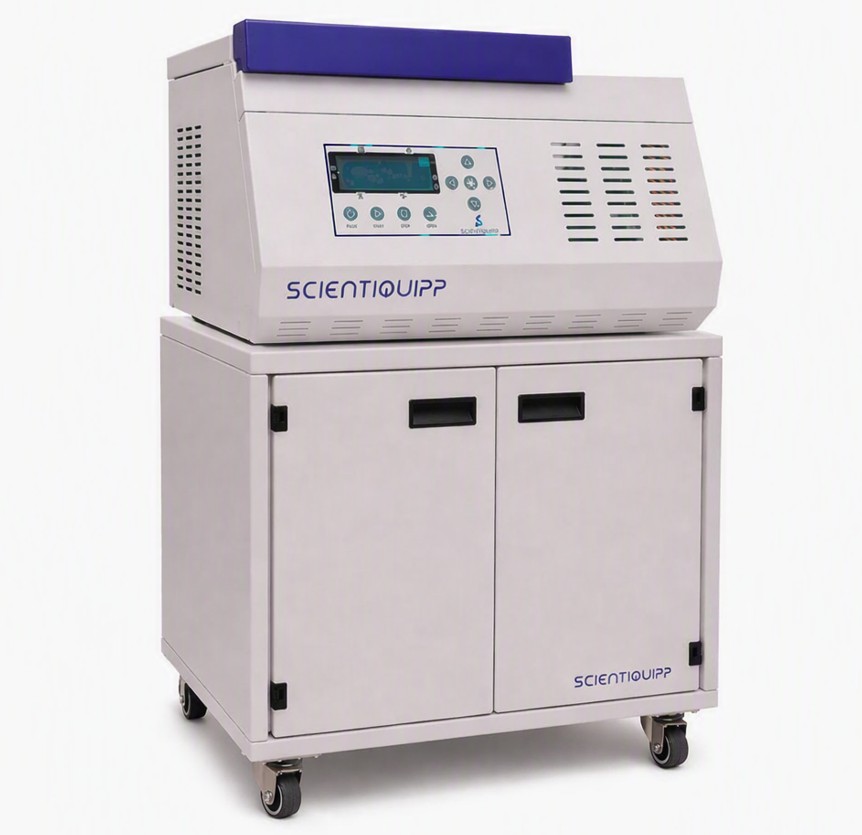

Rota 5R

High-Performance Centrifuge

Contact an Expert

Swing-out rotor

  • 1000 ml
  • 4,500 rpm
  • 4,302xg

Fixed-angle rotor

  • 600 ml
  • 14,000 rpm
  • 25,901xg

User

  • Hospitals
  • Veterinary clinics
  • Food labs
  • Universities & Colleges
  • Pharmaceutical labs
  • Cell culture labs
  • Diagnostics

High Performance

The Rota 5R is a versatile high performance centrifuge. Excellent performance and a comprehensive range of accessories enable the ROTA 5R to carry out virtually any centrifugation task for spinning plates, blood tubes, tubes and bottles. The maximum capacity of the Rota 5 series of centrifuges is 4x250ml. The unit is available with refrigeration, and a temperature range from -20°C to 40°C.

Ergonomic Lid Opening

Our precision lid-locking mechanism ensures a secure seal with minimal physical effort, reducing laboratory fatigue and enhancing user confidence during every operation.

Footprint

At just 81 cm wide, the ROTA 5R maximizes your bench space while delivering professional‑grade rotational velocity

Whisper-Quiet Operation

Powered by a precision‑engineered European brushless motor, the ROTA 5R delivers professional‑grade rotational velocity with minimal noise. This advanced motor design eliminates friction and vibration, ensuring smooth operation that reduces laboratory fatigue and maintains a calm working environment.

No downloads available for this product.

Max. capacity [ml]
Swing-out rotor(max capacity [ml]) 1000 [ml] 4x250ml
Fixed-angle rotor(max capacity [ml]) 600 [ml] 6x100ml
Max. RCF 25,901 x g
Max. speed [rpm] 14,000
Min. speed [rpm] 800
Noise level at maximum speed (approximate) [db(A)]
Fixed-angle rotor (86100) 56 db (A)
Swing-out rotor with bucket(404250) 50 db (A)
Max. acceleration time [s]
Fixed-angle rotor (86100)
Swing-out rotor with bucket (404250)
Max. braking time [s]
Fixed-angle rotor (86100)
Swing-out rotor with bucket (404250)
Temperature setting range [°C] -20°C to +40°C
Power consumption [W] 1700
Height x Width x Depth [mm] 450x810x700
Height with open lid [mm] 980
Weight without rotor [kg] 100
Refrigerant R134a
Charge [kg] / pressure [bar]
CO2 equivalent [t]

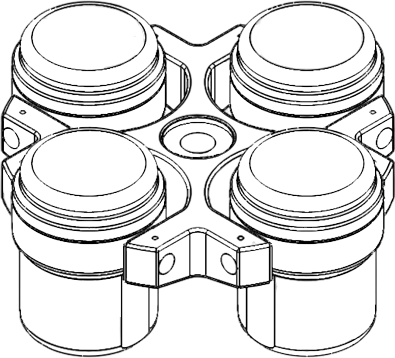

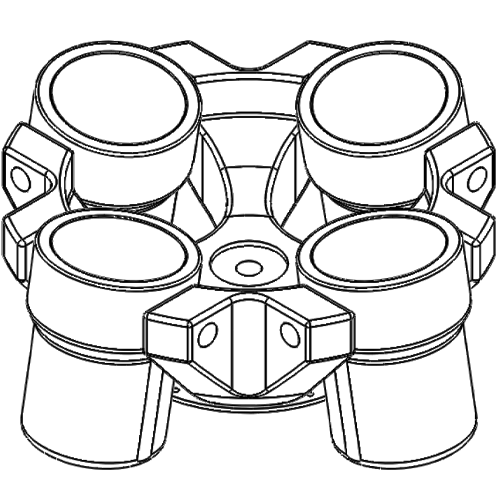

Swing-Out Rotor 200317

S004x250ml

4 x 250 ml
4,500 rpm
4,302 x g

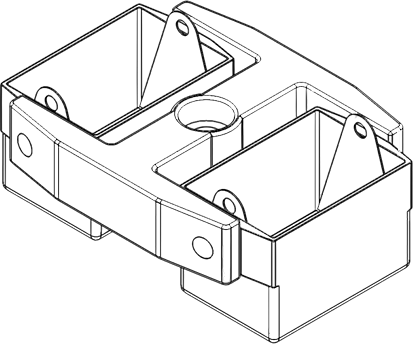

Swing-Out Rotor 200365

S002x4MTP

2 x 192 ml
3,700 rpm
2,189 x g

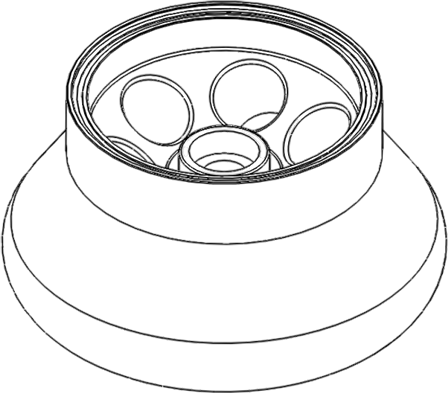

Fixed-Angle Rotor 200367

A006x100ml

6 x 100 ml
11,000 rpm
15, 422 x g

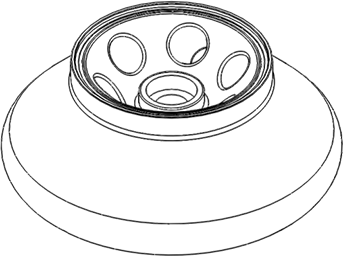

Fixed-Angle Rotor 200550

A006x085ml

4 x 85 ml
12,000 rpm
18,514xg

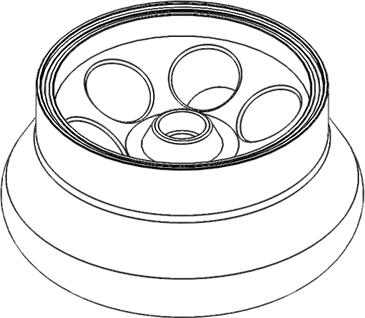

Fixed-Angle Rotor 200368

A006x050ml

6 x 50 ml
12,100 rpm
20,133xg

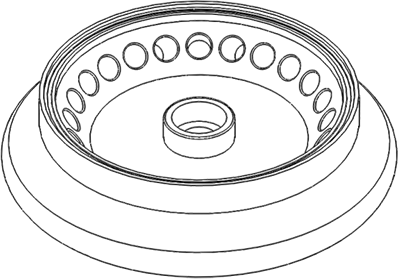

Fixed-Angle Rotor 200379

A024x005ml

24 x 5 ml
13,100 rpm
25,901xg

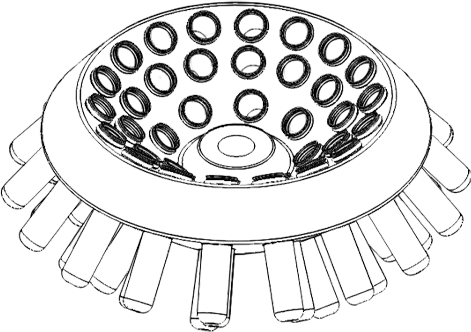

Fixed-Angle Rotor 200375

A048x1.5ml

48 x 1.5 ml
14,000 rpm
21,475xg
Fixed-Angle Rotor 200378

A040x15 ml

40 x 15 ml
5,500 rpm
5,310xg
Swing-Out Rotor 200337

S004x175ml

4 x 175 ml
4,500 rpm
3,441 x g

More from Scientiquipp A wide range of options

Centrifuge Table

Scientiquipp centrifuge tables are offered in three sizes, each precisely matched to the respective centrifuge dimensions. These tables provide an ergonomic working height, alongside a well-considered footprint for efficient space utilization. Constructed from coated sheet steel, they feature a storage compartment with two doors and a practical shelf. Lockable castors ensure the tables can be repositioned and secured easily within laboratory environments.
