Rota 4 R

Refrigerated General Purpose Centrifuge

Rota 4R

Multi-talented for everyday lab use.

Contact an Expert

Swing-out rotor

  • 700 ml
  • 4,500 rpm
  • 3,441 x g

Fixed-angle rotor

  • 400 ml
  • 20,000 rpm
  • 32,198xg

Product options

  • Condensate Drainage

User

  • Hospitals
  • Children's hospitals
  • Veterinary clinics
  • Food labs
  • Universities & Colleges
  • Pharmaceutical labs
  • Cell culture labs
  • Diagnostics

Refrigerated General Purpose Centrifuge

The general-purpose centrifuge Rota 4R is a versatile and indispensable centrifuge for virtually every task in everyday lab work. This all-purpose centrifuge is versatile in use and fits every lab, thanks to its compact design and extensive range of rotors and accessories. This ensure that the Rota 4R can carry out virtually any centrifugation task. This machine can hold PCR tubes, test tubes, microtiter plates. The Rota 4R provides great capacity with 4x175ml in a swing-out rotor or 6x50ml in a fixed angle rotor. The Rota 4R has a high performance precisely adjustable refrigeration system with a temperature range of -10°C to +40°C. The rapid Temp quick cooling function allows the centrifuge chamber and accessories to be pre-cooled to a defined temperature. This ensures optimal protection of specimens against heating.

lock

Ergonomic Lid Opening

Our precision lid-locking mechanism ensures a secure seal with minimal physical effort, reducing laboratory fatigue and enhancing user confidence during every operation.

aspect_ratio

Footprint

At just 65.3 cm wide, the Rota 4R maximizes your bench space while delivering professional‑grade rotational velocity

volume_off

Whisper-Quiet Operation

Powered by a precision‑engineered European brushless motor, the Rota 4R delivers professional‑grade rotational velocity with minimal noise. This advanced motor design eliminates friction and vibration, ensuring smooth operation that reduces laboratory fatigue and maintains a calm working environment.

PDF
User Manual
3.43 MB
Max. capacity [ml]
Swing-out rotor(max capacity [ml]) 700 [ml] 4x175ml
Fixed-angle rotor(max capacity [ml]) 400 [ml] 4x100ml
Max. RCF 32,198 x g
Max. speed [rpm] 20000
Min. speed [rpm] 800
Noise level at maximum speed (approximate) [db(A)]
fixed-angle rotor (8241L) 56 db (A)
swing-out rotor with bucket(404175) 50 db (A)
Max. acceleration time [s]
fixed-angle rotor (84100) 36
swing-out rotor with bucket (404175) 35
Max. braking time [s]
fixed-angle rotor (84100) 27
swing-out rotor with bucket (404175) 21
Temperature setting range [°C] -10°C to +40°C
Power consumption [W] 750
Height x Width x Depth [mm] 410 x 653 x 570
Height with open lid [mm] 815
Weight without rotor [kg] 70
Refrigerant R 134a
Charge [kg] / pressure [bar] 0.25kg
CO2 equivalent [t] 0.358
Fixed-angle rotor 12096
Fixed-Angle Rotor 200150

A006x30ml

6 x 30 ml
11,000 rpm
11,093 x g
Fixed-angle rotor 12082
Fixed-Angle Rotor 200151

L006x50ml

6 x 50 ml
10,000 rpm
10,509 x g
Fixed-angle rotor 12097
Fixed-Angle Rotor 200206

A004x100ml

4 x 100 ml
5,000 rpm
2,823 x g
Fixed-Angle Rotor 200226

L012x15ml

12 x 15
10,000 rpm
11,404 x g
Fixed-Angle Rotor 200145

A004x030 ml

4 x 30 ml
16,000 rpm
21,179 x g
Fixed-Angle Rotor 200137

A020x005ml

20 x 5 ml
16,000 rpm
20,035 x g
Fixed-Angle Rotor 200132

A010x008ml

10 x 8 ml
16,000 rpm
22,324 x g
Fixed-Angle Rotor 200253

A012x005ml

12 x 5 ml
14,000 rpm
22,351 x g
Fixed-Angle Rotor 200148

A048x1.5ml

48 x 1.5 ml
10,000 rpm
10,062 x g
Fixed-Angle Rotor 200380

A030x1.5ml

30 x 1.5 ml
15,000 rpm
25,155 x g
Fixed-Angle Rotor 200142

L024x1.5ml with Lid

24 x1.5 ml
17,500 rpm
29,103 x g
Fixed-Angle Rotor 200143

A032x0.2ml (PCR)

32 x 0.2 ml
15,000 rpm
15,345 x g
Fixed-Angle Rotor 200139

A024x1.5ml

24 x 1.5 ml
20,000 rpm
32,198 x g
Swing-Out Rotor 200202

S384x0.5ml

384 x 0.5 ml
4,000 rpm
2,075 x g
Swing-Out Rotor 200155

S192x0.5ml

192 x 0.5 ml
2,000 rpm
581 x g
Swing-Out Rotor 200154

S010x1.5ml

10 x 1.5 ml
10,000 rpm
9,391 x g
Swing-Out Rotor 200157

S004x175ml

4 x 175 ml
4,500 rpm
3,441 x g
Fixed-Angle Rotor 200140

A024x015ml

24 x 15 ml
5,000 rpm
3,857 x g

More from Scientiquipp A wide range of options

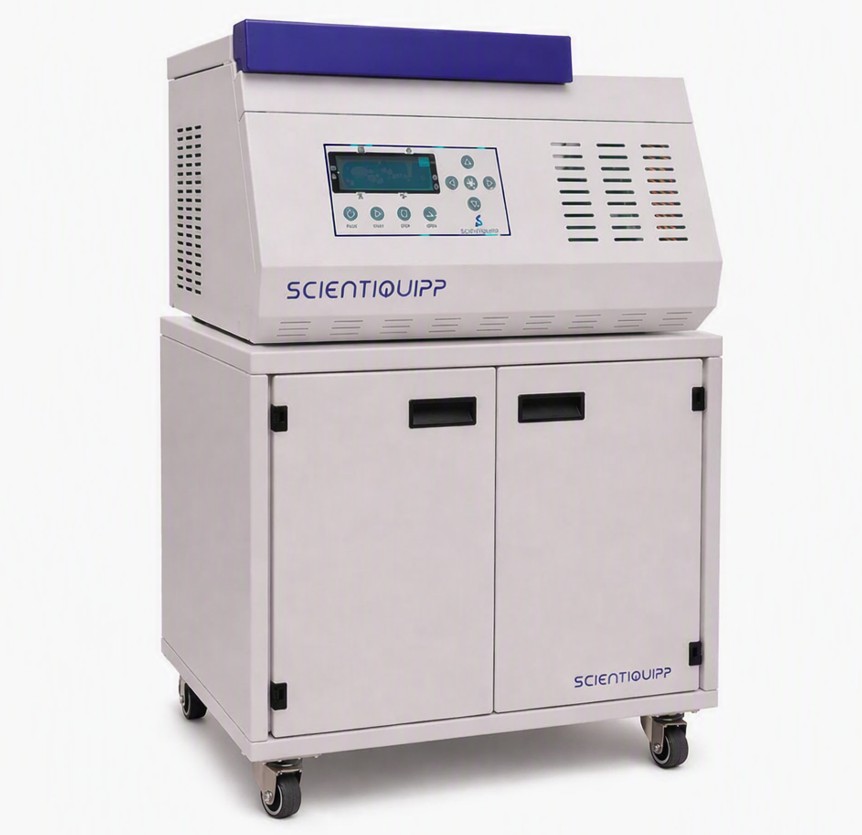

Centrifuge Table

Scientiquipp centrifuge tables are offered in three sizes, each precisely matched to the respective centrifuge dimensions. These tables provide an ergonomic working height, alongside a well-considered footprint for efficient space utilization. Constructed from coated sheet steel, they feature a storage compartment with two doors and a practical shelf. Lockable castors ensure the tables can be repositioned and secured easily within laboratory environments.

For Rota 4R
