High Performance

Rota 5

Contact an Expert

Swing-out rotor

  • 1000 ml
  • 4,500 rpm
  • 4,302 x g

Fixed-angle rotor

  • 600 ml
  • 13,000 rpm
  • 21,734xg

High Performance

The Rota 5 is a versatile high performance centrifuge. Excellent performance and a comprehensive range of accessories enable the ROTA 5 to carry out virtually any centrifugation task for spinning plates, blood tubes, tubes and bottles. The maximum capacity of the Rota 5 series of centrifuges is 4x250ml. The unit is available with refrigeration, and a temperature range from -20°C to 40°C.

Ergonomic Lid Locking

Our precision lid-locking mechanism ensures a secure seal with minimal physical effort, reducing laboratory fatigue and enhancing user confidence during every operation.

Footprint

At just 55.5 cm wide, the ROTA 5 maximizes your bench space while delivering professional‑grade rotational velocity.

Whisper-Quiet Operation

Powered by a precision‑engineered European brushless motor, the ROTA 5 delivers professional‑grade rotational velocity with minimal noise. This advanced motor design eliminates friction and vibration, ensuring smooth operation that reduces laboratory fatigue and maintains a calm working environment.

No downloads available for this product.

Max. capacity [ml]
Swing-out rotor(max capacity [ml]) 1000 [ml] 4x250ml
Fixed-angle rotor(max capacity [ml]) 600 [ml] 6x100ml
Max. RCF 21,734 x g
Max. speed [rpm] 13,000
Min. speed [rpm] 800
Noise level at maximum speed (approximate) [db(A)]
Fixed-angle rotor (86100)
Swing-out rotor with bucket(404250)
Max. acceleration time [s]
Fixed-angle rotor (86100)
Swing-out rotor with bucket (404250)
Max. braking time [s]
Fixed-angle rotor (86100)
Swing-out rotor with bucket (404250)
Temperature setting range [°C] Ambient
Power consumption [W] 1300
Height x Width x Depth [mm] 450x555x705
Height with open lid [mm] 980
Weight without rotor [kg] 80

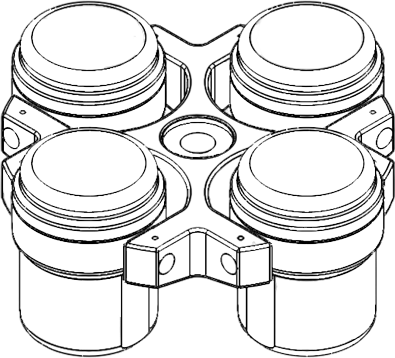

Swing-Out Rotor 200317

S004x250ml

4 x 250 ml
4,500 rpm
4,302 x g

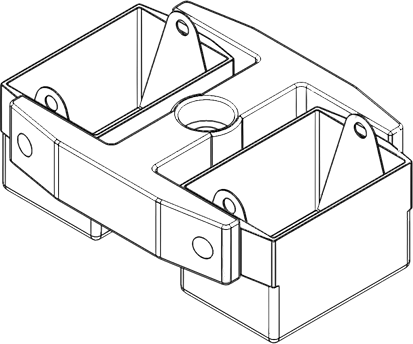

Swing-Out Rotor 200365

S002x4MTP

2 x 192 ml
3,700 rpm
2,189 x g

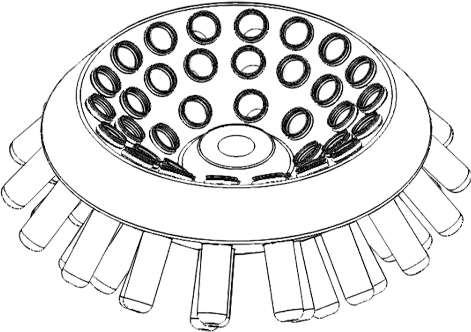

Fixed-Angle Rotor 200378

A040x15 ml

40 x 15 ml
5,500 rpm
5,310xg

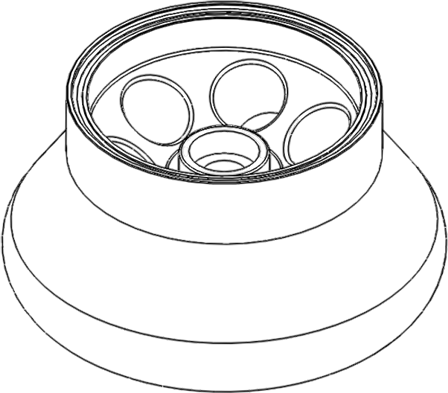

Fixed-Angle Rotor 200729

A006x100ml

6 x 100 ml
10,000 rpm
12,745 x g

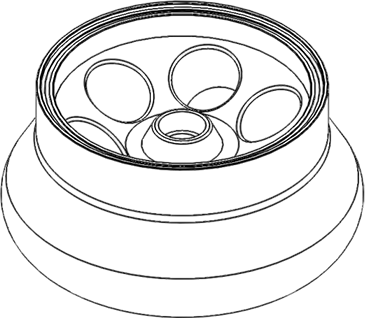

Fixed-Angle Rotor 200736

A006x85 ml

6 x 85 ml
10,000 rpm
12,857xg

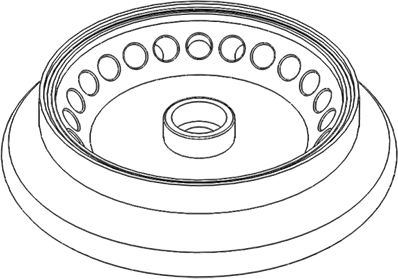

Fixed-Angle Rotor 200754

A024x005ml

24 x 5 ml
12,000 rpm
21,734xg

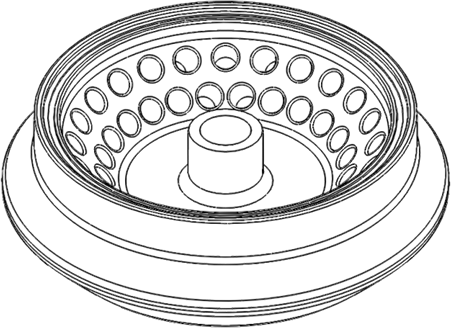

Fixed-Angle Rotor 200755

A048x1.5ml

48 x 1.5 ml
13,000 rpm
18,516xg
