Micro-Centrifuge

Superspin R

Compact, Powerful and Versatile

Contact an Expert

Fixed-angle rotor

  • 80 ml
  • 20,000 rpm
  • 32,198xg

User

  • Clinical
  • Hospitals
  • Infant stations
  • Forensic Sciences
  • Universities and Colleges
  • Veterinary clinics
  • Pharmaceutical Labs
  • Cell culture Labs

Micro-Centrifuge

The Super-Spin R has a small footprint, fits in every laboratory and fulfils the most stringent requirements. Its strong performance and range of microlitre rotors is unique. Six fixed angle rotors provide a maximum capacity of 80mL. The PCR combi rotor make the Super-spin series an all – round laboratory centrifuge suitable for a variety of applications such as DNA, RNA, clinical chemistry in research labs, food labs, universities, Industry and Healthcare. The powerful refrigeration system of the Super-spin R keeps samples at temperatures as low as 4°C degrees during continuous operation at the highest speed.

PDF
User Manual
3.16 MB
Max. capacity [ml] 80 [ml] 10x8ml
Fixed-angle rotor(max capacity [ml]) 80 [ml] 10x8ml
Max. RCF 32,198 x g
Max. speed [rpm] 20,000
Min. speed [rpm] 800
Noise level at maximum speed (approximate) [db(A)]
Fixed-angle rotor (8108) 58 db (A)
Max. acceleration time [s]
Fixed-angle rotor (8108) 69
Max. braking time [s]
Fixed-angle rotor (8108) 65
Temperature setting range [°C] -10°C to +40°C
Power consumption [W] 750
Height x Width x Depth [mm] 360X375X735
Height with open lid [mm] 670
Weight without rotor [kg] 60
Refrigerant R134a
Charge [kg] / pressure [bar] 0.250kg
CO2 equivalent [t] 0.36Mt
Fixed-Angle Rotor 200137

A020x005ml

20 x 5 ml
16,000 rpm
20,035 x g

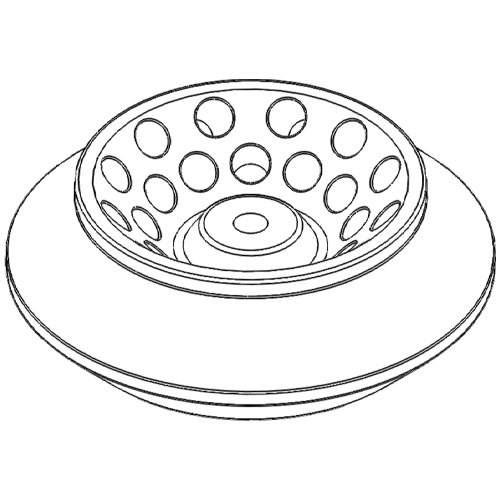

Fixed-Angle Rotor 200132

A010x008ml

10 x 8 ml
16,000 rpm
22,324 x g

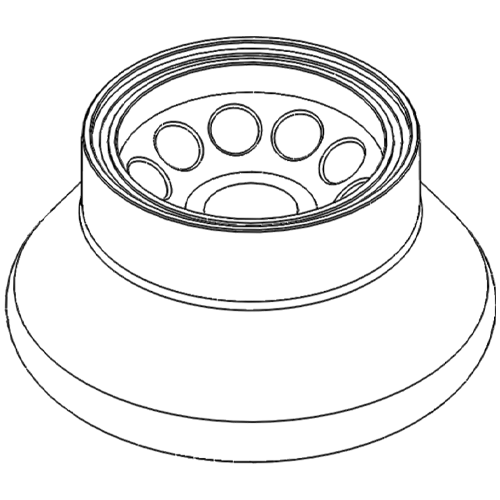

Fixed-Angle Rotor 200142

L024x1.5ml with Lid

24 x1.5 ml
17,500 rpm
29,103 x g

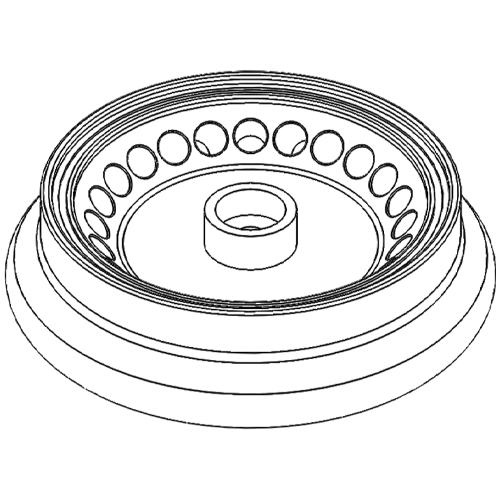

Fixed-Angle Rotor 200143

A032x0.2ml (PCR)

32 x 0.2 ml
15,000 rpm
15,345 x g

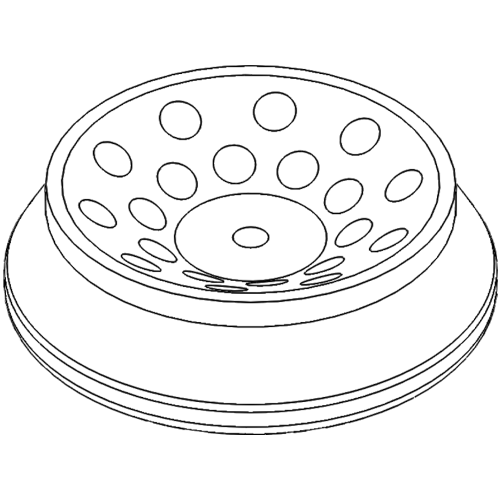

Fixed-Angle Rotor 200139

A024x1.5ml

24 x 1.5 ml
20,000 rpm
32,198 x g

More from Scientiquipp A wide range of options

Centrifuge Table

Scientiquipp centrifuge tables are offered in three sizes, each precisely matched to the respective centrifuge dimensions. These tables provide an ergonomic working height, alongside a well-considered footprint for efficient space utilization. Constructed from coated sheet steel, they feature a storage compartment with two doors and a practical shelf. Lockable castors ensure the tables can be repositioned and secured easily within laboratory environments.
